Where the product is processed

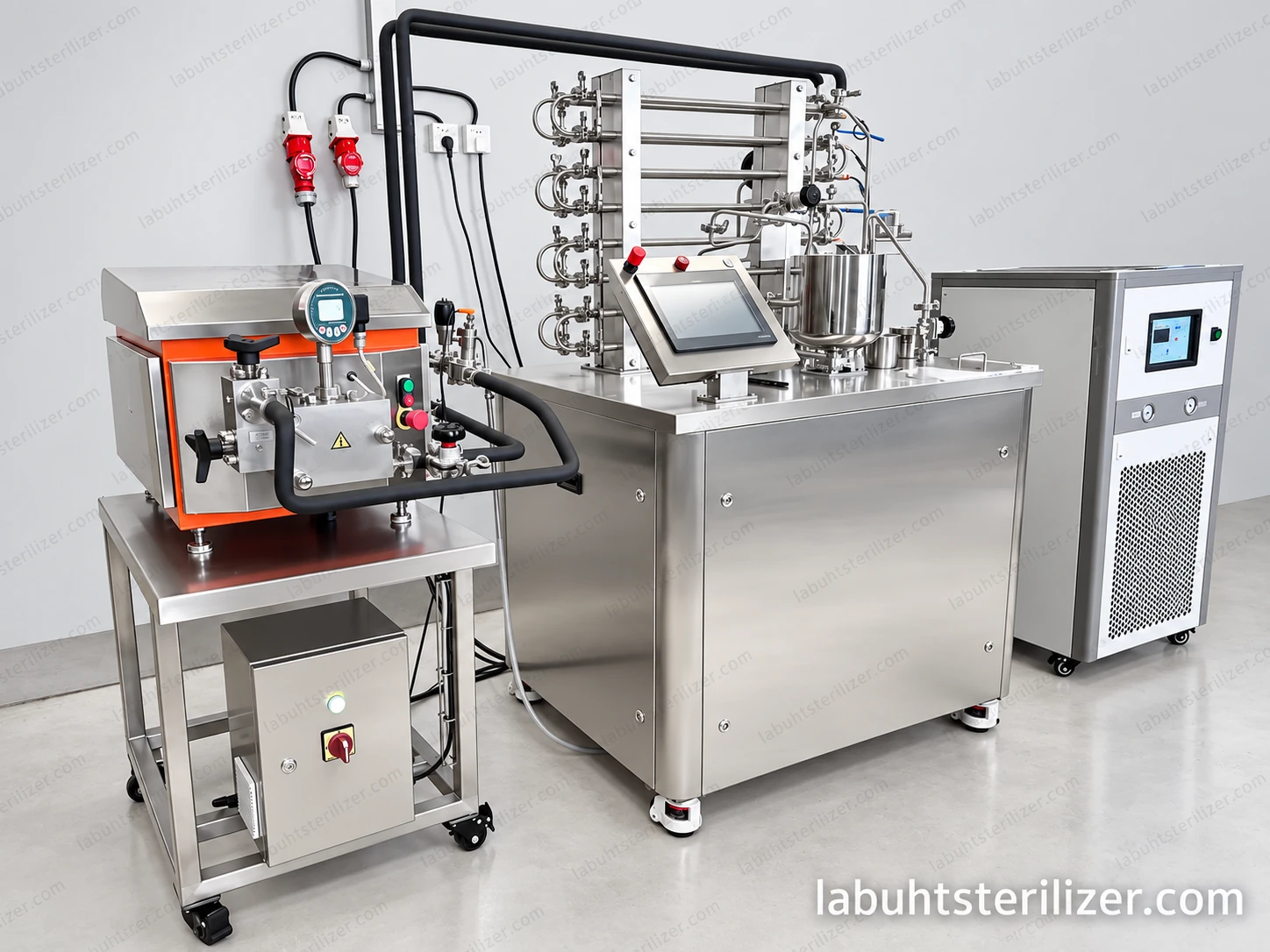

The pumping mechanism forces the formulation through the homogenizing valve under pressure. The pressure drop and local mechanical action break down dispersed droplets or particles. The photographed unit gives access to the homogenizing head and its connections above a compact frame, rather than enclosing the whole product path inside the thermal unit.
Pressure and number of stages
The manufacturer lists two-stage homogenization and an adjustable pressure range. The effective pressure setting, stage distribution and actual flow belong in the trial record. A maximum pressure is a mechanical capability; it does not predict particle size, emulsion stability or sensory quality for an untested recipe.
Connecting to thermal processing
Position the unit according to the intended treatment sequence and the product temperature it will receive. Upstream and downstream pressures, inlet conditions and the outlet connection need to fit the thermal route. An aseptic downstream arrangement needs its own configuration and preparation; a standalone homogenizer is not automatically an aseptic homogenizer.
Product contact and maintenance
The catalogue specifies SS316L product-contact material and a CIP/SIP-capable configuration. The homogenizing valve, seals and product connections remain inspection points. Cleaning parameters and reassembly follow the supplied equipment instructions, while the supporting frame provides physical access for service.
Selecting a research configuration
This unit is relevant to dairy emulsions, plant-based formulations and suitable liquid food dispersions. Use the actual feed particle size and product behaviour to select the head and operating conditions. Allow for the product held in the unit and the changeover material when planning a small-sample trial. The quoted configuration defines the connection and control integration.
Configuration details
Specifications & operating conditions
| Item | Configuration | Applicable conditions |
|---|---|---|
| Pressure range | 0–600 bar | Manufacturer-listed adjustable range; operating pressure is selected for the product and configuration. |
| Homogenizing arrangement | Two stages | Manufacturer catalogue configuration; stage settings are part of the trial method. |
| Product-contact material | SS316L | Catalogue product-contact specification; confirm the complete supplied wetted assembly. |
| Listed feed particle limit | 500 µm | Manufacturer catalogue limit for the described configuration; product suitability still depends on its physical properties. |
